Vehicle-specific high-level brake light reversing camera for Nissan NV200 2010–2019 and Chevrolet City Express 2014–2018. The camera secures into the vehicle’s third high-level brake light housing for a discreet OEM-style installation and provides an elevated downward-facing view to assist with reversing and parking. Available with CVBS/AHD and NTSC/PAL video options, infrared night vision, IP68-rated housing and a 4-pin aviation connection. Includes a power cable and 10-metre video cable.
PLEASE NOTE: Please check that the image and dimensions of the camera matches the existing high level brake light on the vehicle.
Improve rear visibility with this vehicle-specific high-level brake light reversing camera for selected Nissan NV200 and Chevrolet City Express models.
The camera secures into the vehicle's third high-level brake light housing, creating a discreet OEM-style installation while maintaining the original appearance of the rear of the vehicle.
The camera is angled downward to provide a useful view of the area behind the vehicle when reversing, parking or manoeuvring, making it well suited to commercial vans and vehicles with restricted rear visibility.
Designed for selected Nissan NV200 and Chevrolet City Express high-level brake light housings.
Secures into the third brake light position for a cleaner, more integrated installation than a universal camera.
The camera is angled downward to provide a useful view of the area immediately behind the vehicle.
Available with CVBS or AHD video formats for use with compatible aftermarket stereos, monitors and camera interfaces.
High-brightness infrared LED support helps provide rear visibility in low-light conditions, with a night vision distance of approximately 30ft.
Designed for exterior vehicle installation with an IP68-rated, temperature-resistant housing.
Please Note: Vehicle variations can exist within the listed production years. Compare the product photographs and dimensions with the existing high-level brake light before ordering.

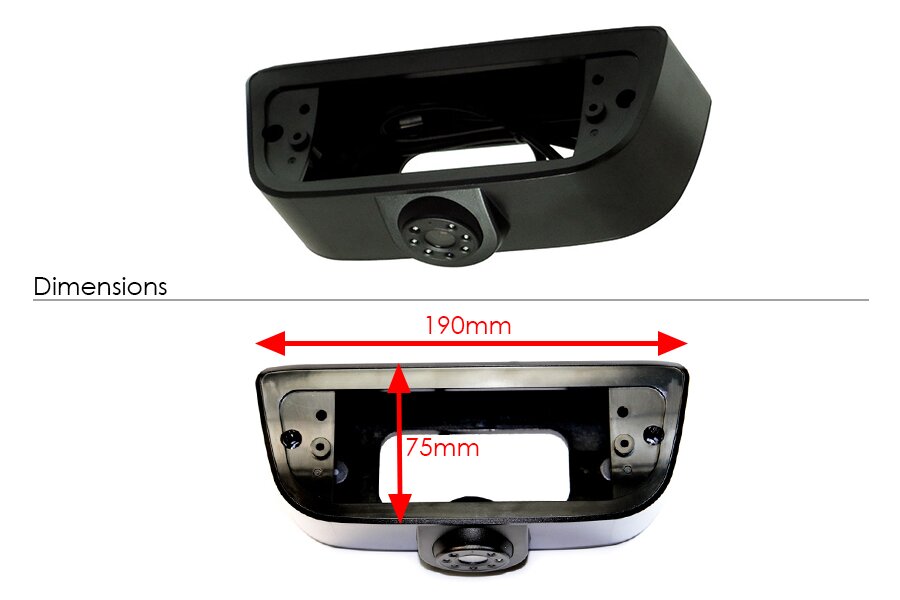

The housing shown measures approximately 190mm wide × 75mm high. Check these dimensions against the original brake light fitted to the vehicle.
If connecting the 4-pin aviation camera connection to a standard RCA/phono video input, an additional converter adapter may be required.
The years above reflect the current InCarTec vehicle compatibility data. Always compare the original high-level brake light housing with the product photographs and dimensions before ordering.
| Sensor | 1/2.7 FH8536H + C2399 |
|---|---|
| Video signal | CVBS / AHD optional |
| TV system | NTSC / PAL optional |
| CVBS effective pixels | 728(H) × 488(V) |
| AHD 1080P effective pixels | 1920(H) × 1080(V) |
| AHD 720P effective pixels | 1280(H) × 720(V) |
| Resolution | 700–1000 TVL |
| Minimum illumination | 0.1 lux; 0 lux with LED active |
| IR LED | High-brightness LED |
| Night vision distance | Approximately 30ft |
| IP rating | IP68 |
| Current consumption | 150mA |
| Power supply | 12V standard |
| Voltage compatibility | 5V–18V |
| Connector | 4-pin aviation female |
| Operating temperature | -30°C to +75°C, RH95% max |
| Storage temperature | -40°C to +85°C, RH95% max |
| Material | PC plastic |
| Housing properties | High- and low-temperature resistant, flame retardant |
The camera mounts within the vehicle's third high-level brake light position.
The lens is angled downward to provide a parking-distance view of the road and area immediately behind the vehicle.
This high mounting position is particularly useful on commercial vans where the driver may have limited visibility through the rear of the vehicle.
The camera specification supports CVBS / AHD and NTSC / PAL configurations.
The stereo, monitor or interface must support the same video format used by the camera. An AHD output requires an AHD-compatible display.
CVBS is a conventional analogue video format supported by many aftermarket stereos and reversing camera monitors.
Depending on the installation, the camera can be used with suitable:
Always check that the display supports the video format used by the camera.
If the display has a standard RCA/phono video input, an additional 4-pin aviation-to-RCA adapter may be required.
The current InCarTec compatibility data lists Nissan NV200 models from 2010–2019.
Always compare the original high-level brake light housing with the product images and dimensions before ordering.
The current InCarTec compatibility data lists Chevrolet City Express models from 2014–2018.
The camera secures into the third high-level brake light housing at the rear of the vehicle, providing a discreet and vehicle-specific installation.
Yes. The camera is angled downward to provide a useful view of the area immediately behind the vehicle when reversing and parking.
Yes, provided the stereo has a compatible reversing camera input and supports the video format being used. An additional adapter may be required for a standard RCA/phono input.
AHD supports a higher-resolution image when used with a compatible AHD display. CVBS is a conventional analogue video format supported by many aftermarket stereos and reversing camera monitors.
Yes. The specification includes a high-brightness infrared LED, 0 lux operation with the LED active and an approximate night vision distance of 30ft.
The camera includes a power connection cable and a 10-metre video cable for routing the connection through the vehicle.
Contact InCarTec with your vehicle make, model and year, a photograph of the original high-level brake light and details of the stereo or monitor you plan to connect the camera to.
Contact InCarTecBrand: InCarTec
Car models: The years stated refer to the model's years of manufacture, please check the item description for information about any changes there may be within these productions years.
Chevrolet - City Express (2014 - 2018)
Nissan - NV200 (2010 - 2019)
